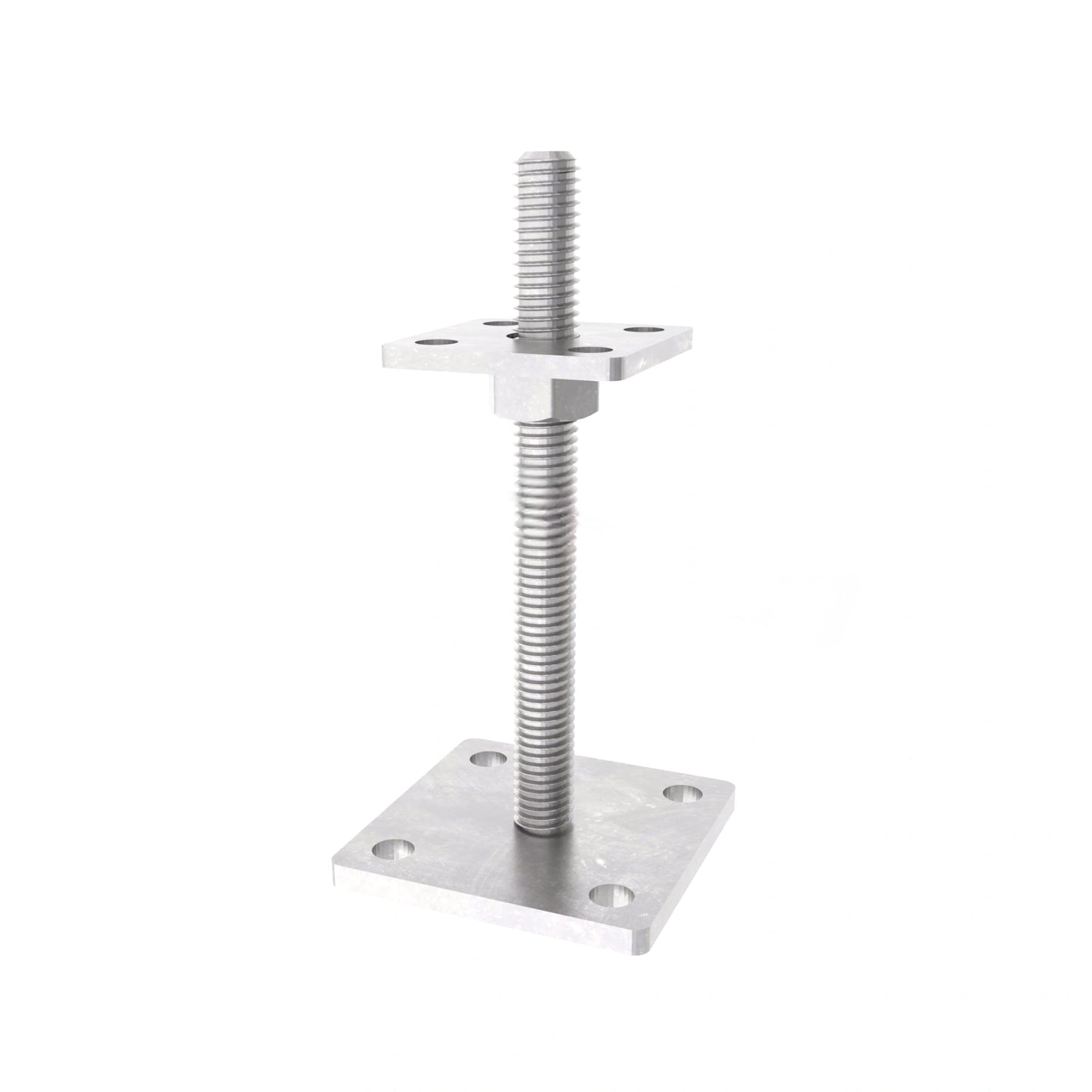

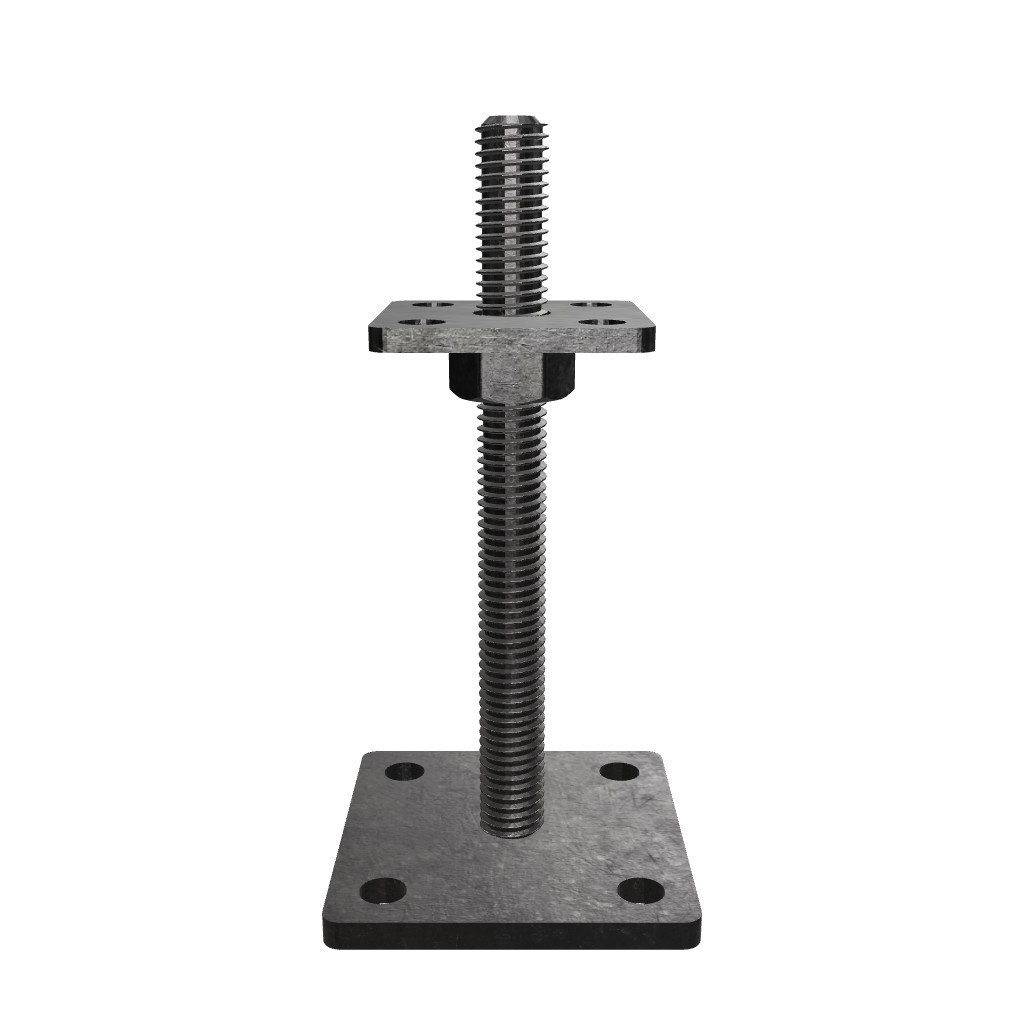

• Bolt down height adjustable post support

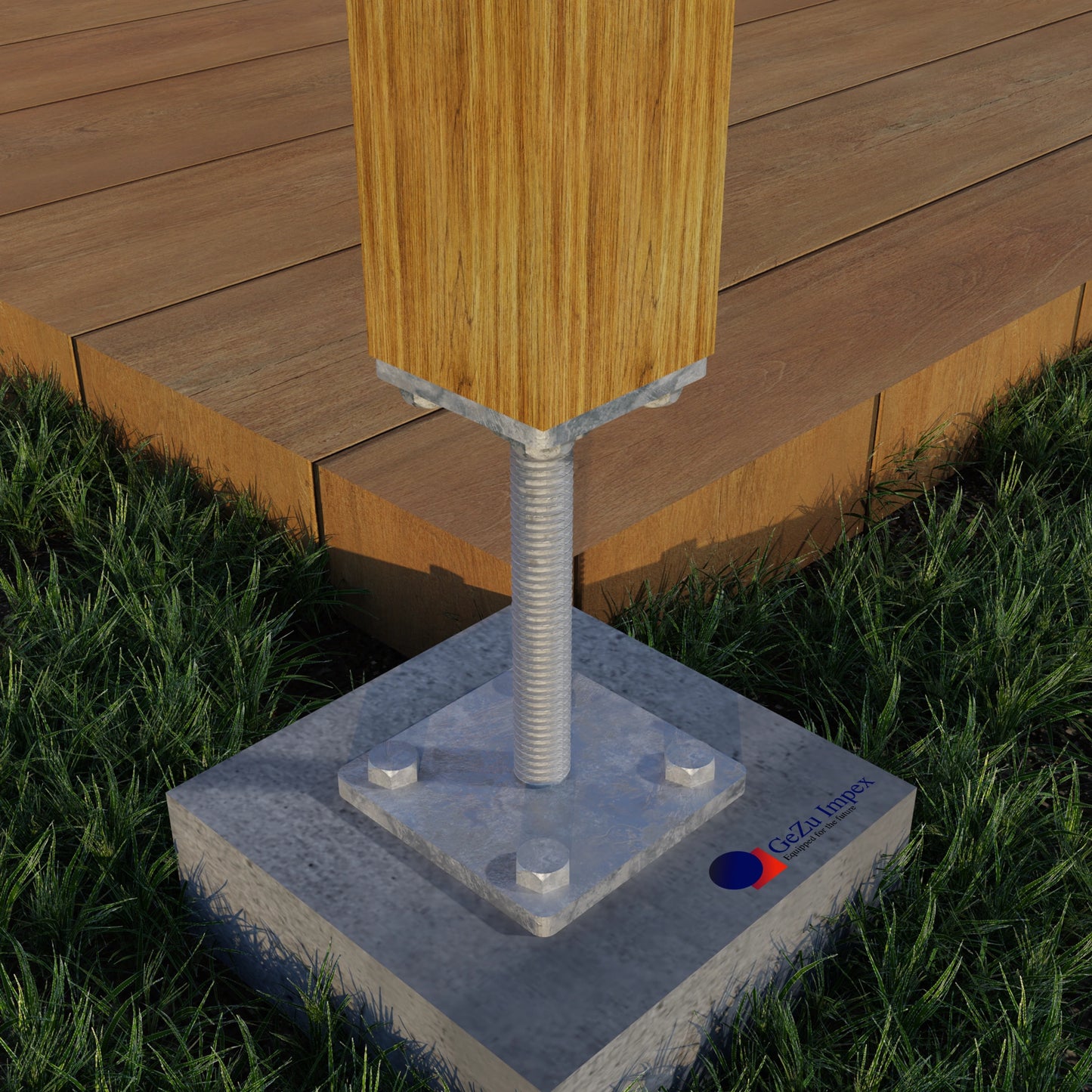

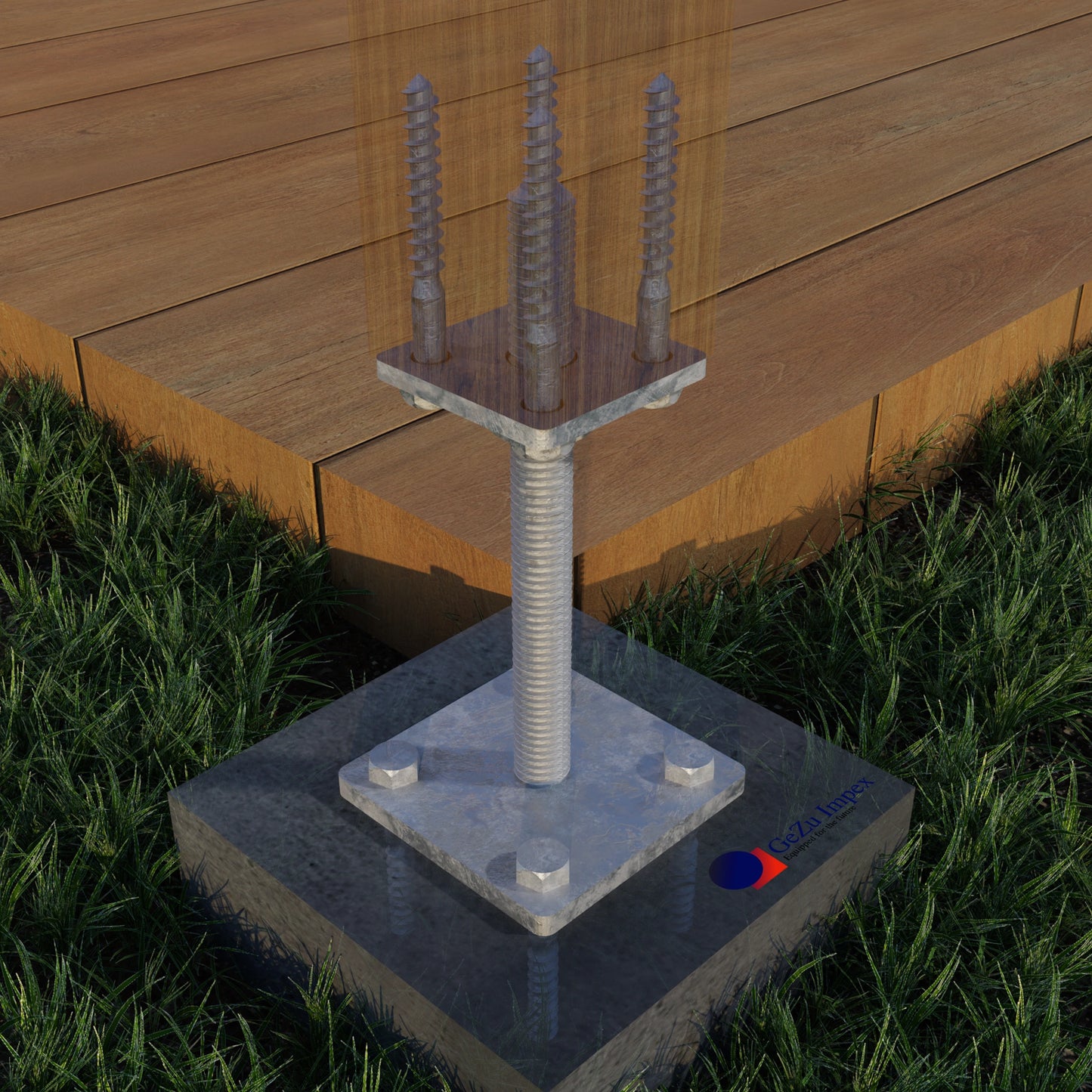

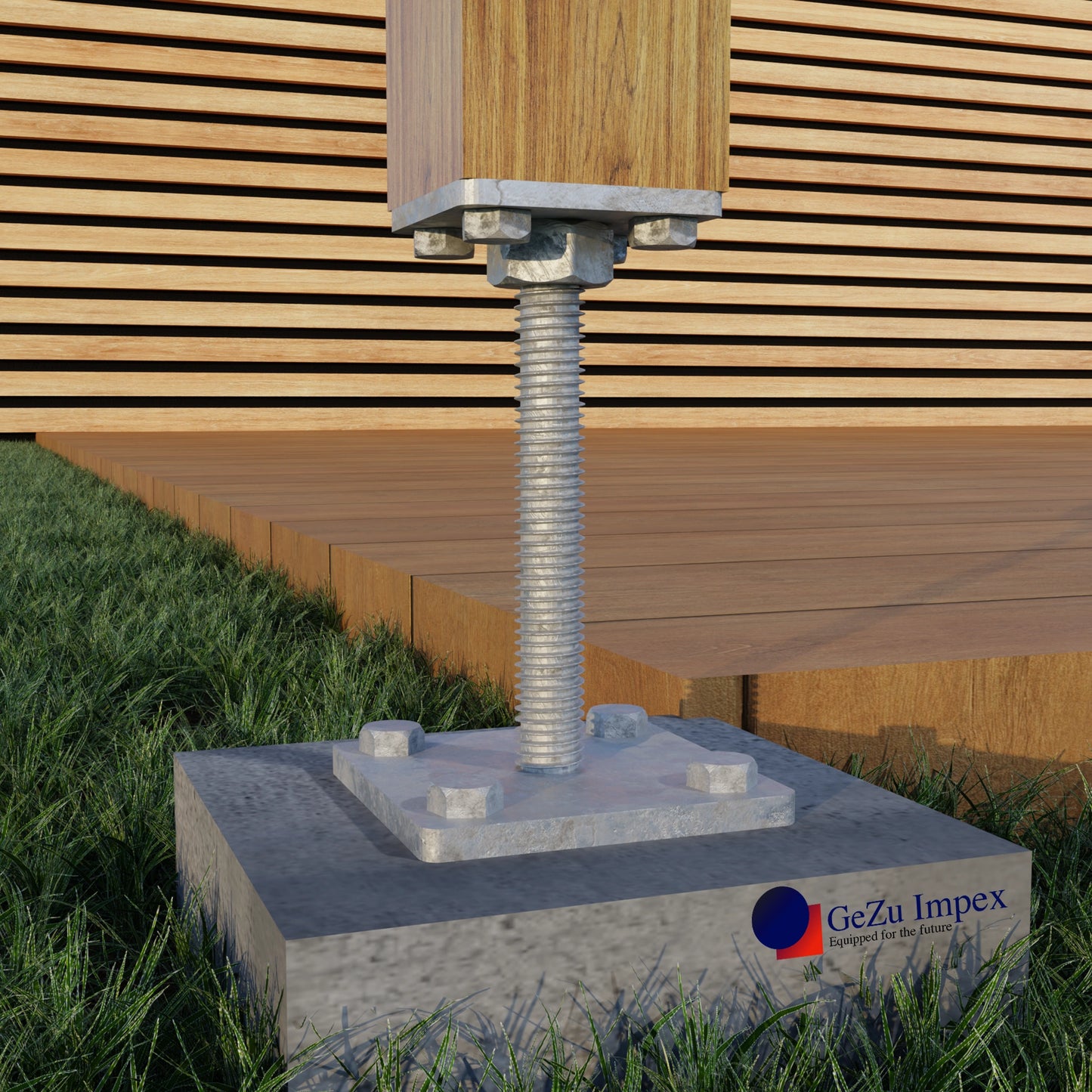

  • Wooden post mounted on concrete foundation using bolt down height adjustable post support.

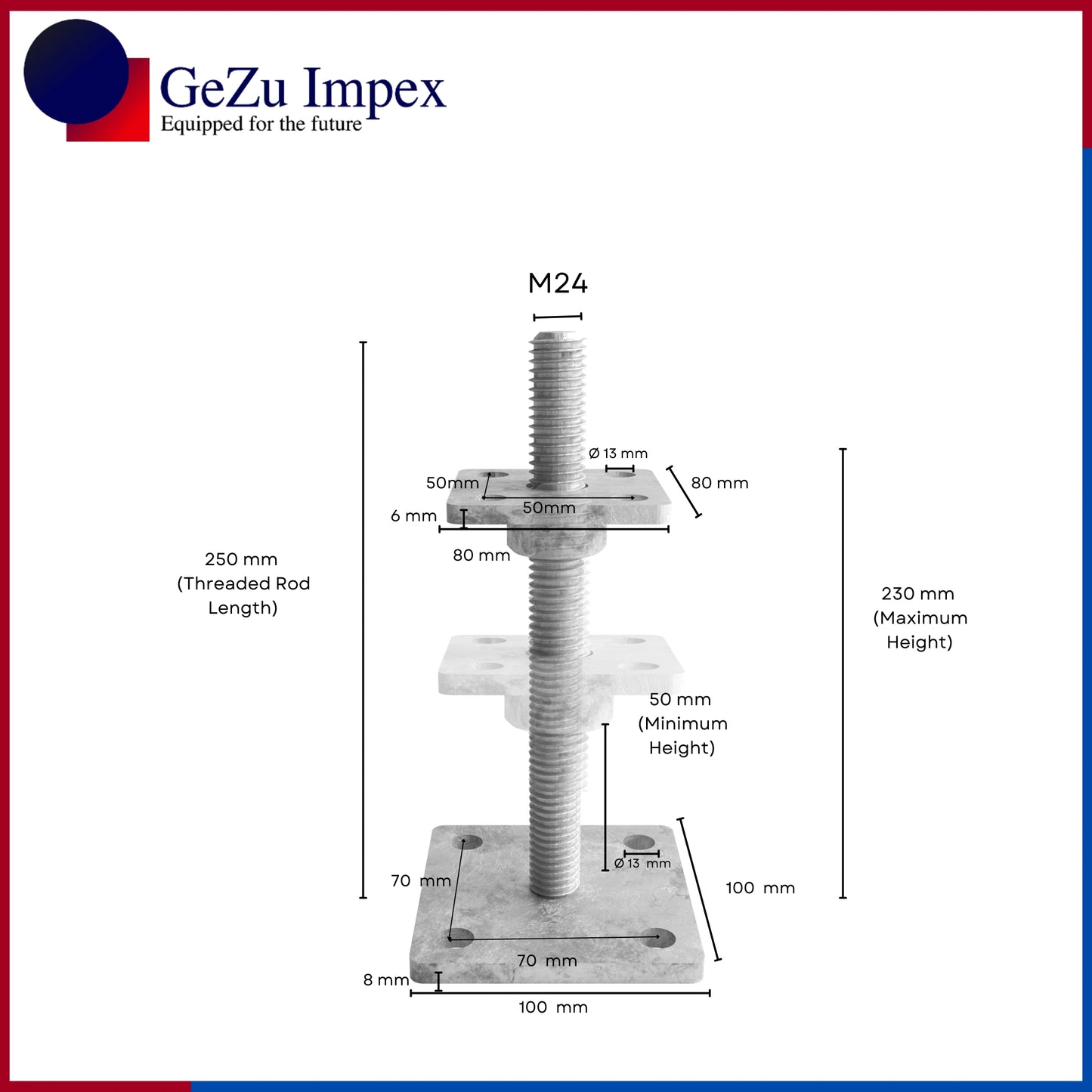

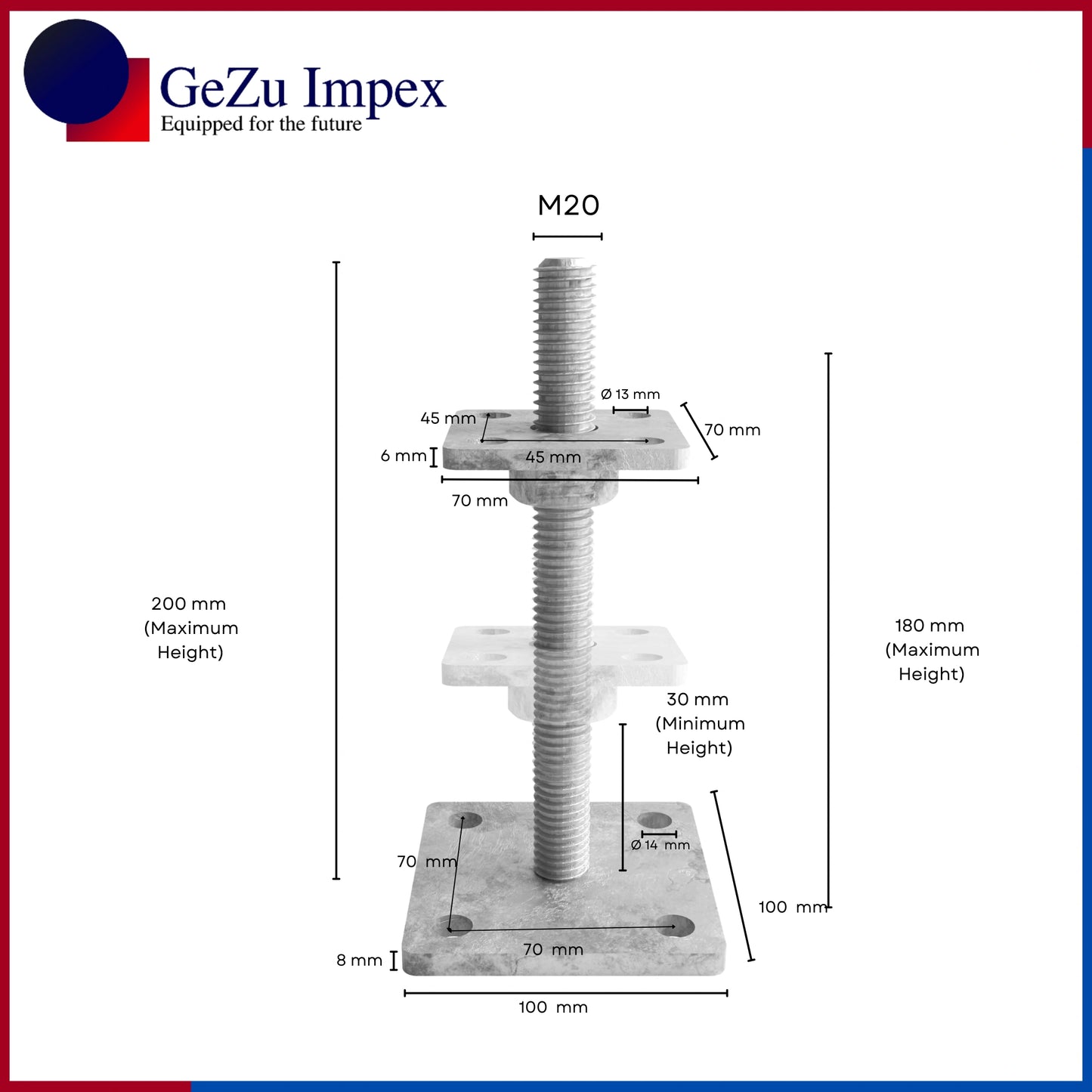

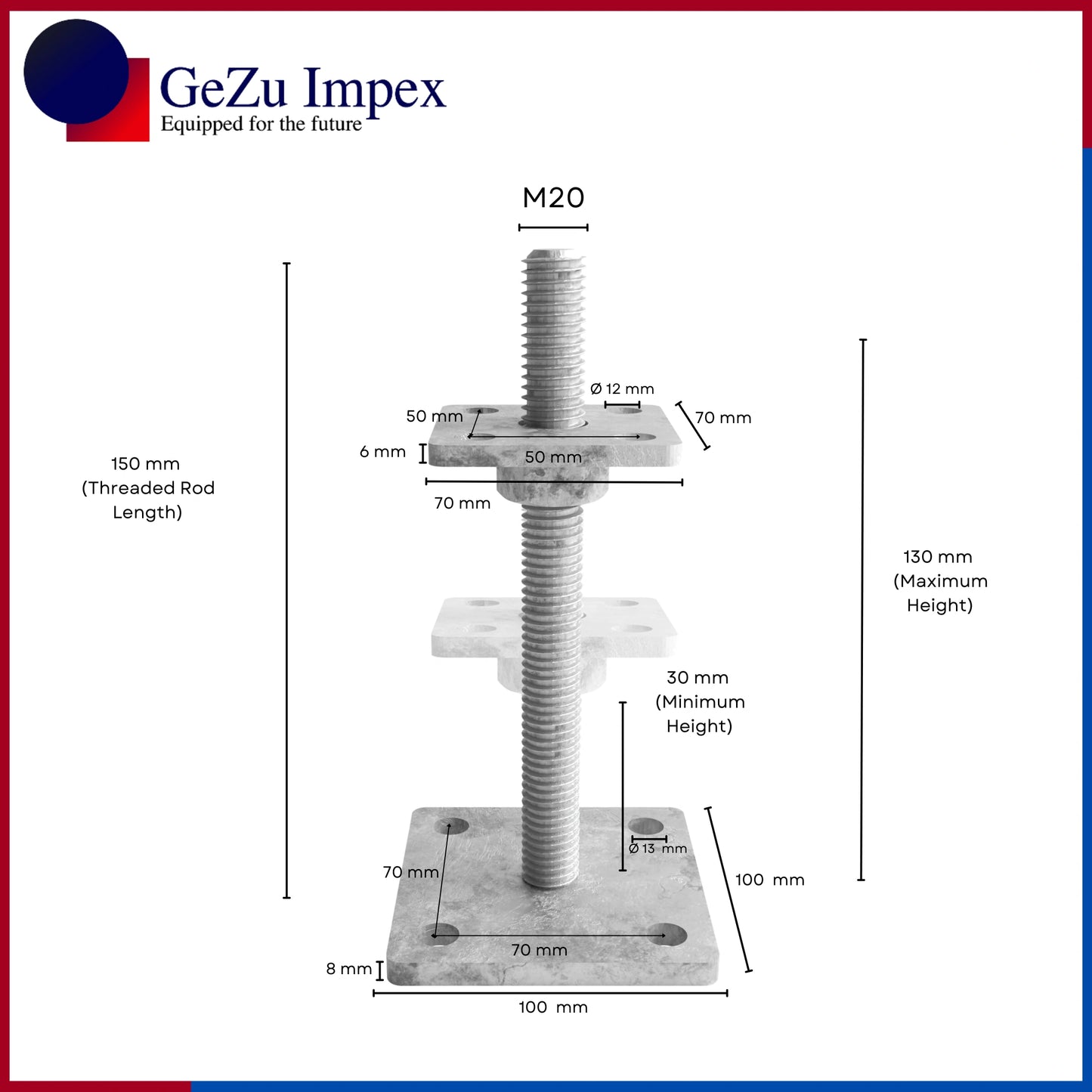

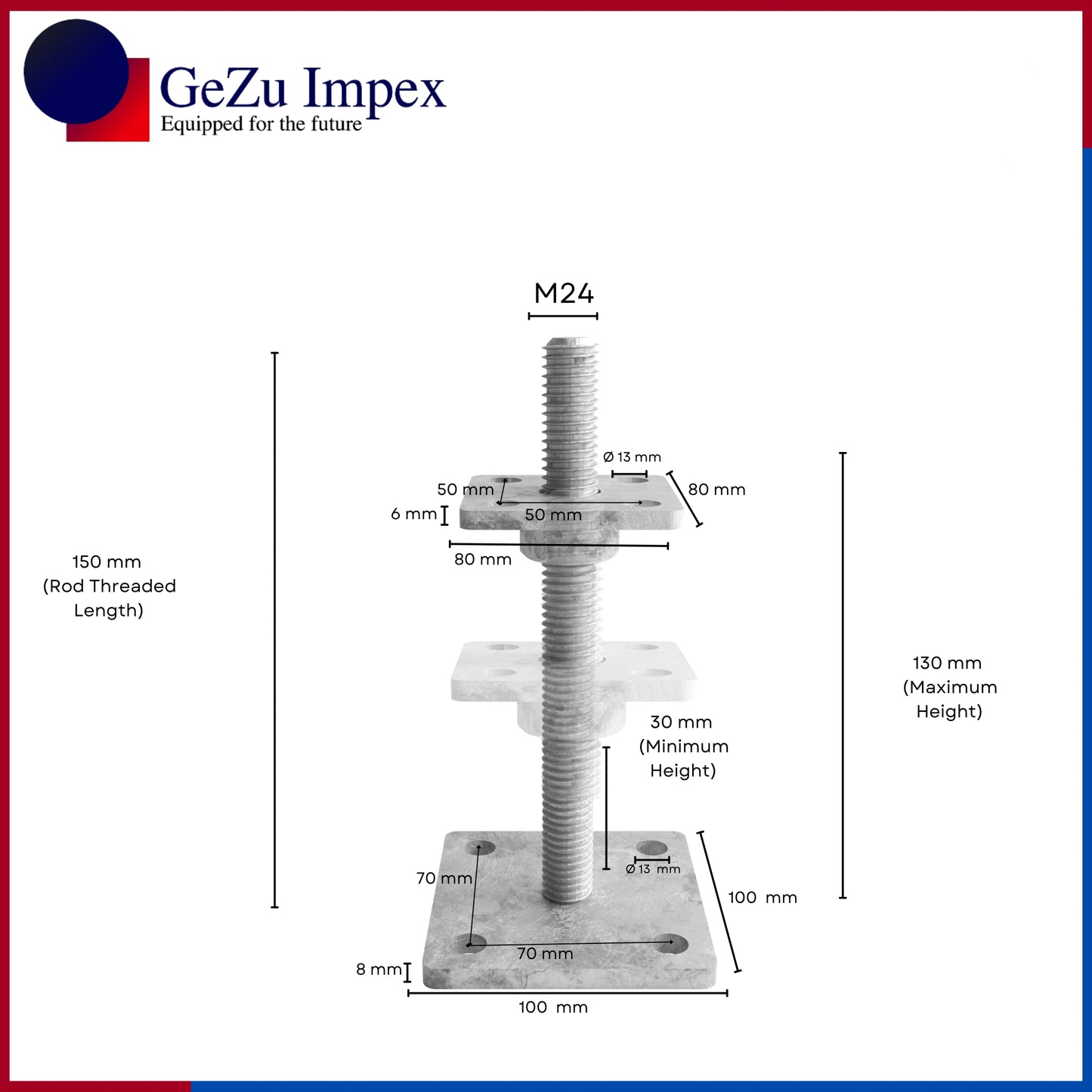

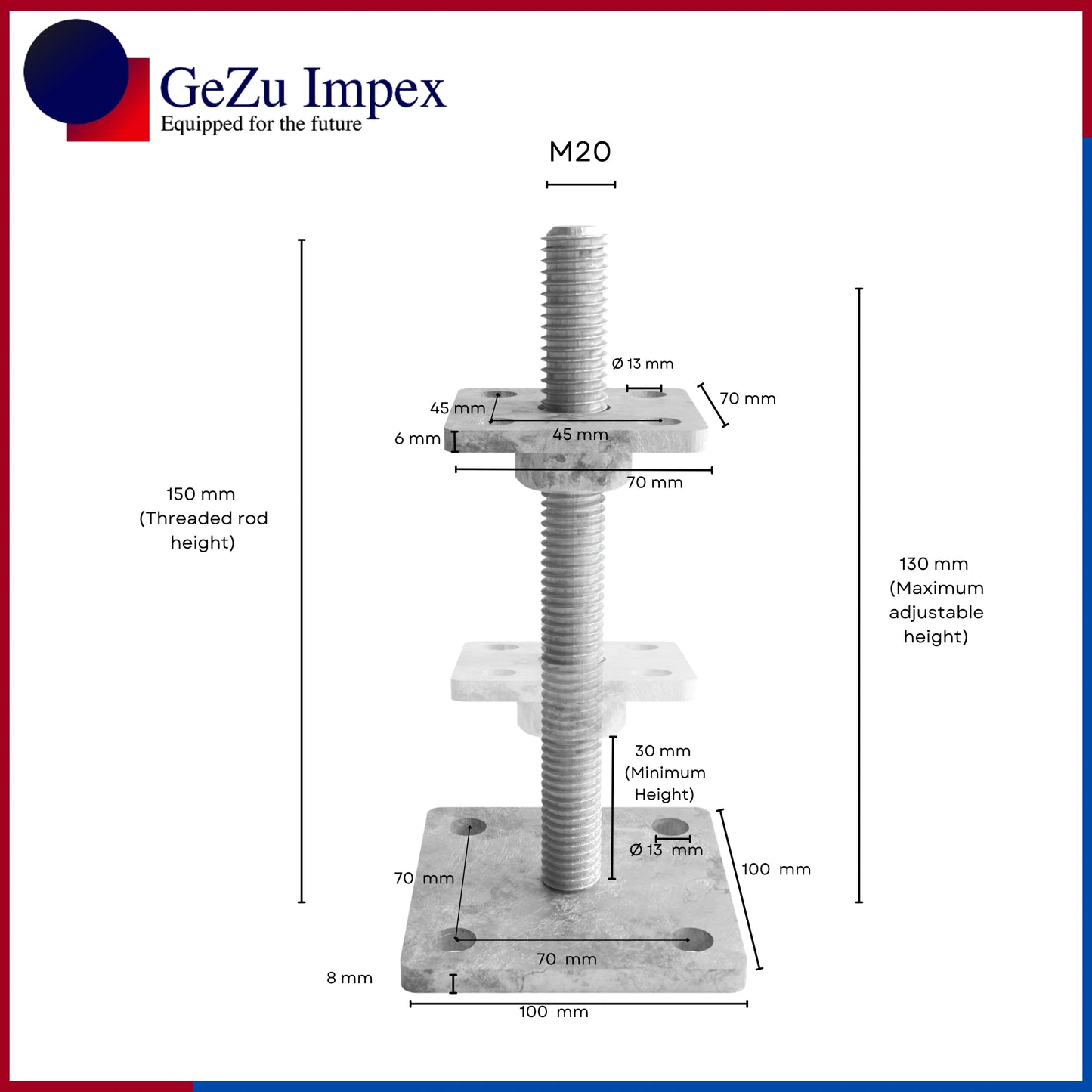

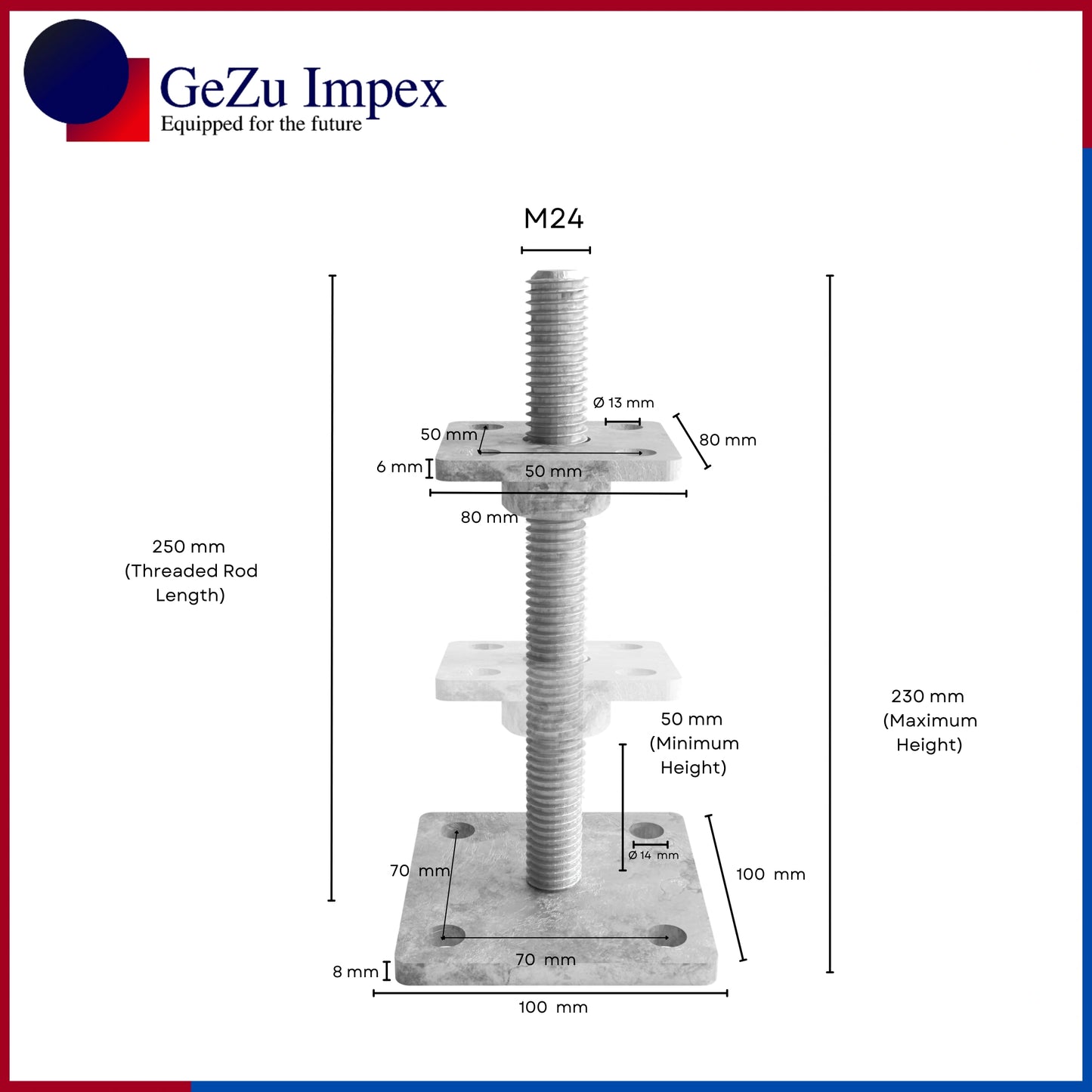

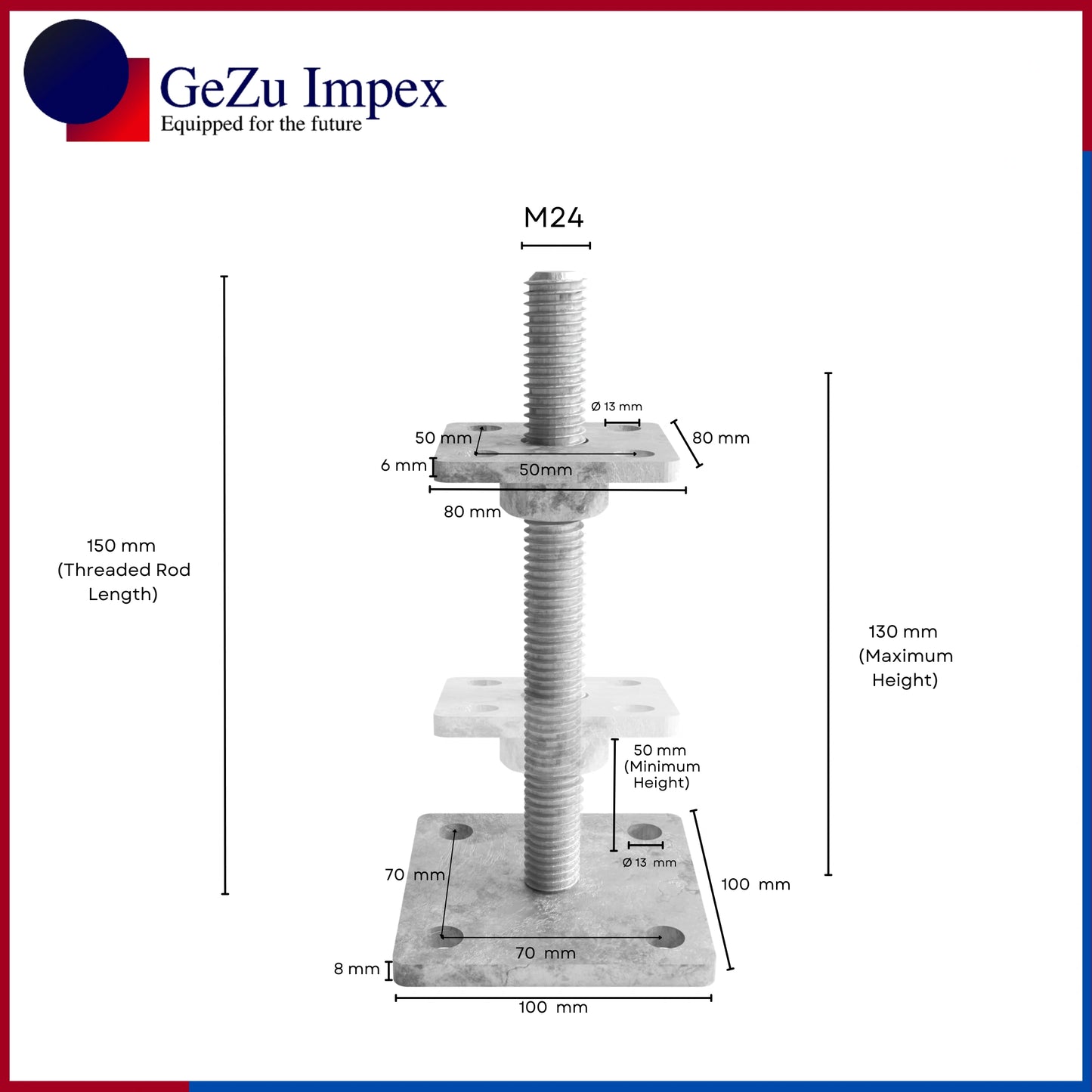

  • Bolt down height adjustable post support with labeled size dimensions, showing base plate, bolt and adjustment range.
  • Bolt down height adjustable post support
  • Wooden post mounted on concrete foundation using bolt down height adjustable post support.
  • Bolt down height adjustable post support with labeled size dimensions, showing base plate, bolt and adjustment range.
  • Bolt down height adjustable post support
  • Wooden post mounted on concrete foundation using bolt down height adjustable post support.
  • Bolt down height adjustable post support with labeled size dimensions, showing base plate, bolt and adjustment range.
  • Bolt down height adjustable post support
  • Wooden post mounted on concrete foundation using bolt down height adjustable post support.
  • Bolt down height adjustable post support with labeled size dimensions, showing base plate, bolt and adjustment range.
  • Bolt down height adjustable post support
  • Wooden post mounted on concrete foundation using bolt down height adjustable post support.
  • Bolt down height adjustable post support
  • Wooden post mounted on concrete foundation using bolt down height adjustable post support.
  • Bolt down height adjustable post support with labeled size dimensions, showing base plate, bolt and adjustment range.
  • Bolt down height adjustable post support
  • Wooden post mounted on concrete foundation using bolt down height adjustable post support.
  • Bolt down height adjustable post support with labeled size dimensions, showing base plate, bolt and adjustment range.
  • Bolt down height adjustable post support
  • Wooden post mounted on concrete foundation using bolt down height adjustable post support.
  • Bolt down height adjustable post support with labeled size dimensions, showing base plate, bolt and adjustment range.
  • Bolt down height adjustable post support
  • Wooden post mounted on concrete foundation using bolt down height adjustable post support.
  • Bolt down height adjustable post support with labeled size dimensions, showing base plate, bolt and adjustment range.
  • Bolt down height adjustable post support
  • Wooden post mounted on concrete foundation using bolt down height adjustable post support.
  • Bolt down height adjustable post support with labeled size dimensions, showing base plate, bolt and adjustment range.
  • Bolt down height adjustable post support
  • Wooden post mounted on concrete foundation using bolt down height adjustable post support.
  • Bolt down height adjustable post support with labeled size dimensions, showing base plate, bolt and adjustment range.
  • Bolt down height adjustable post support
  • Wooden post mounted on concrete foundation using bolt down height adjustable post support.
  • Bolt down height adjustable post support with labeled size dimensions, showing base plate, bolt and adjustment range.
  • Bolt down height adjustable post support
  • Wooden post mounted on concrete foundation using bolt down height adjustable post support.
  • Bolt down height adjustable post support with labeled size dimensions, showing base plate, bolt and adjustment range.
  • Bolt down height adjustable post support
  • Wooden post mounted on concrete foundation using bolt down height adjustable post support.
  • Bolt down height adjustable post support with labeled size dimensions, showing base plate, bolt and adjustment range.
1 42

33131610050b

Height Adjustable Bolt Down Post Support | Adjustable Post Base

Height Adjustable Bolt Down Post Support | Adjustable Post Base

£2.99
£2.99
Tax included. Shipping calculated at checkout.
Product Information

PRODUCT - Post supports are very practical and widely used in garden and timber construction projects. The hexagon nut is welded to the support plate, ensuring stability, and the welded joint firmly fixes the plate in place.

FEATURES - The Adjustable Bolt Down Post Support can be attached to a level concrete or wooden floor using 4 holes, each with a diameter of 13 mm, or secured with bolt anchors.

USABILITY - If the foundation does not have the same height everywhere, the post support can be adjusted in a range of 30 - 80 mm before final installation. The 100 mm long threaded rod enables both the height adjustment function and the function of a Mandrel that is screwed into or out of the post when the height is adjusted.

VERSATILITY - For stability reasons, approx. 10 - 20 mm of the adjustment range is required as thread security. Thanks to the hot-dip galvanisation, the Adjustable Elevated Post Base Support is optimally protected against external weather influences. The base plate measures 70 x 70 mm and the support plate measures 50 x 50 mm.

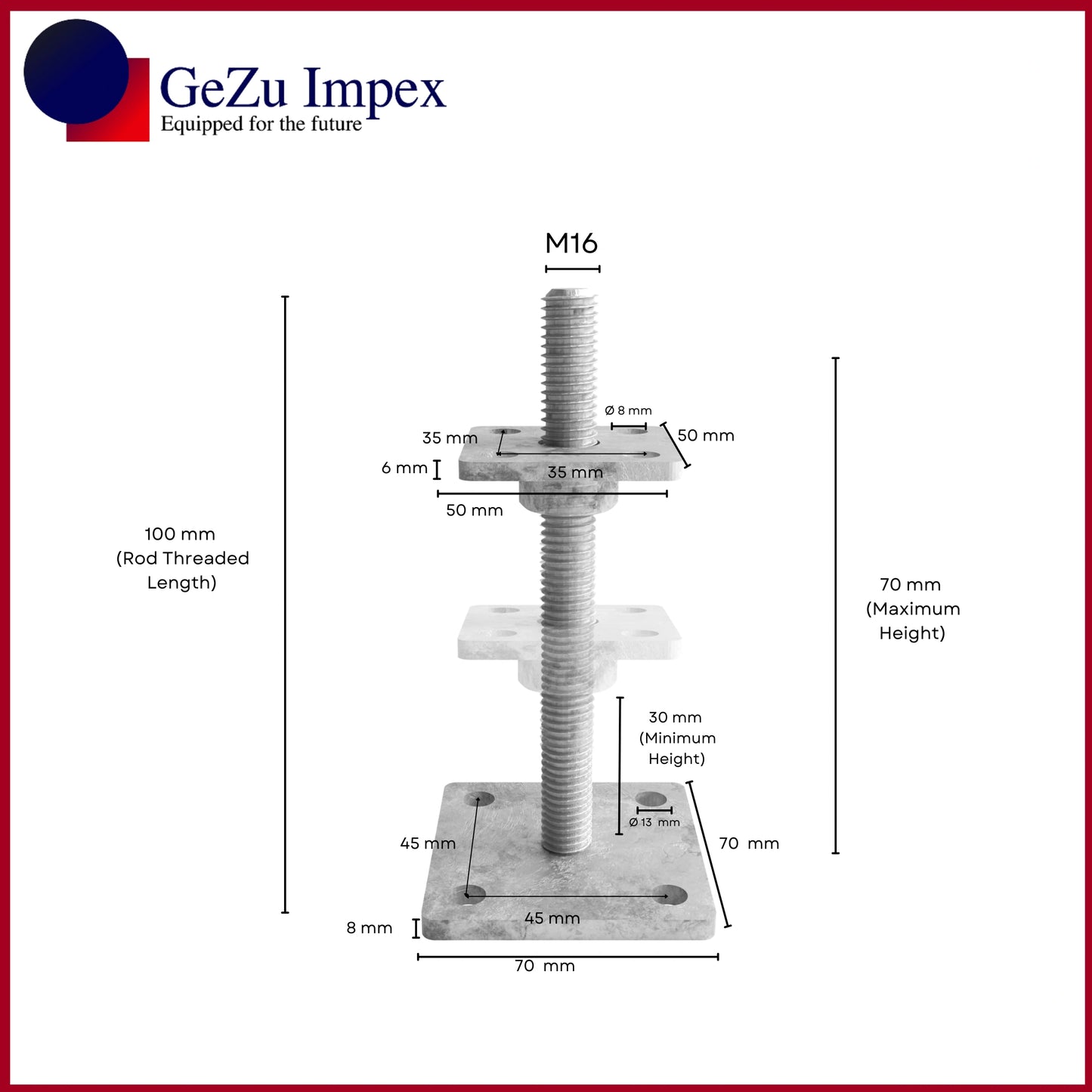

TECHINCAL DETAILS - Adjustment range: 30 - 80 mm - Mounting plate: 50 x 50 mm - Mounting plate thickness: 6 mm - Mounting plate holes: 4 holes Ø 8 mm - Mounting plate hole spacing: 35 mm - Base plate: 70 x 70 mm - Base plate thickness: 8 mm - Base plate holes: 4 holes Ø 13 mm - Base plate hole spacing: 45 mm - Pin/thread diameter: 16 mm - Hex nut: SW 24 - Material: Hot-dip galvanized steel
